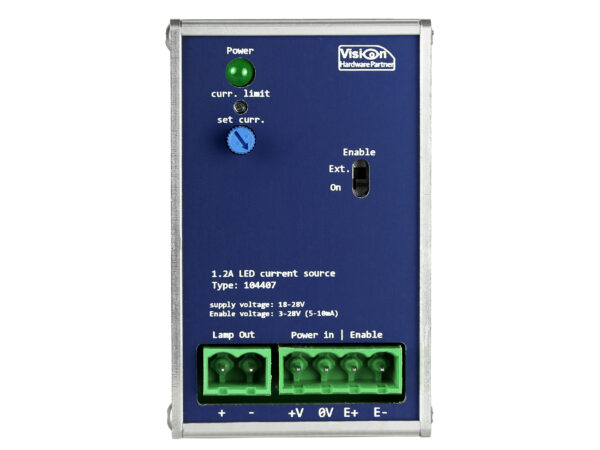

Small form factor DIN rail mountable continuous current source for LED lamps up to 1.2A.
The “sett curr.” control knob allows users to adjust LED lamp intensity between 0–100% of the maximum set current. Once the maximum current has been configured via the “Curr. limit” trimmer, the intensity can be safely modified without risking lamp damage. An enable input permits PC/PLC control for switching the lamp off when unnecessary, reducing power consumption and heat dissipation.
Technical Specifications
- Input voltage: 12–35V (optimal range: 18–35V)
- Output voltage: 2.5V to Vin – 2V
- Output current: adjustable 30mA – 1.2A
- Efficiency at full load: 95%
- Mode switch: always on, or controlled by enable input
- Enable input voltage range: 3–30V
- Enable input current draw (on level): 5–10mA
- Dimensions: 76(h) × 49(w) × 50(d) mm (depth includes connectors)
