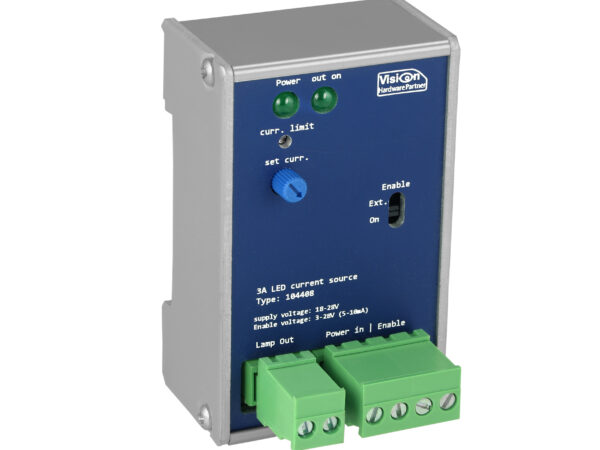

Small form factor DIN rail mountable continuous current source for LED lamps up to 3A.
The “sett curr.” control knob allows adjustment of LED lamp intensity from 0–100% of the maximum set current. Once the maximum current has been configured via the “Curr. limit” trimmer, intensity can be safely modified without risking lamp damage. An enable input permits PC/PLC control for switching the lamp off when unnecessary, conserving power and reducing heat generation.
Technical Specifications
- Input voltage: 12–35V (optimal range: 18–35V)
- Output voltage: 2.5V to Vin – 2V
- Output current: adjustable 200mA – 3A
- Efficiency at full load: 98%
- Mode switch: continuous or enable input controlled
- Enable input voltage range: 3–30V
- Enable input current draw (on level): 5–10mA
- Dimensions: 76(h) × 49(w) × 50(d) mm (depth includes connectors)
