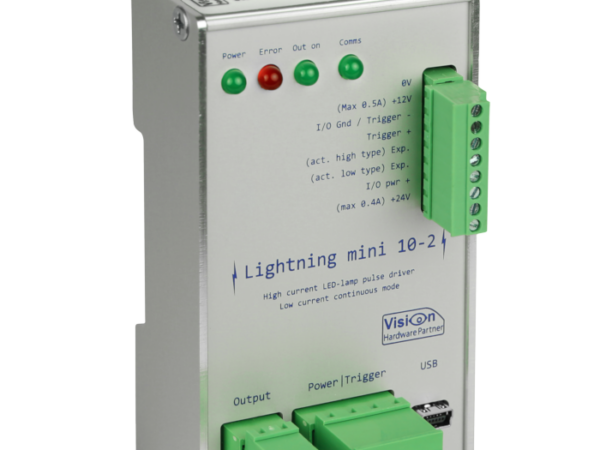

The Lightning 10-2 LED lamp driver is a low cost solution for driving small to medium sized LED lamps in either continuous or pulsed mode. Pulse currents up to 12.5A.
The enable input functions as either a trigger (pulse mode) or standard enable control. Users can configure the device via supplied software, and a DLL is included for integration with custom PC applications. The unit also supports manual configuration through a serial terminal, making it suitable as a dedicated driver with custom lamps. A DIN-rail clamp facilitates mounting in system cabinets.
Features
- Supply voltage: 12–30V
- Continuous current: 0–1A
- Pulse current: 0–12.5A
- Driver max average power: 20W
- Driver max pulse power (100µs): 550W
- Trigger input compatibility: 5V and 24V signals
- Pulse duration adjustment in 1µs increments
- End user can select lamp pulse intensity on a scale of 0–100%
- Driver limits pulse duration to protect the lamp
