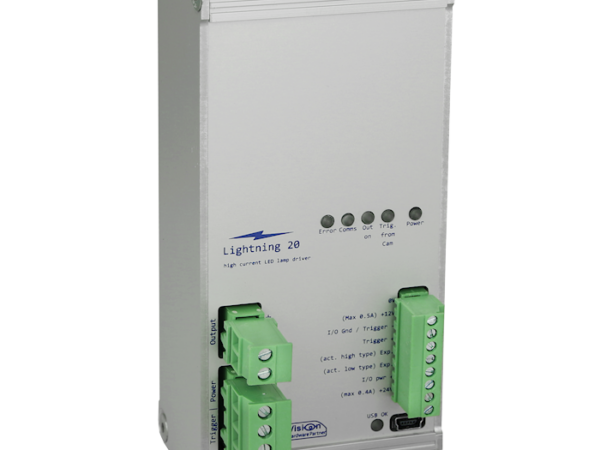

The Lightning 20 LED lamp driver is a powerful solution for pulse driving medium to large sized LED lamps. Pulsed power up to 1100 Watts. Pulse currents up to 20A.
The driver can be configured with the supplied software. The supplied DLL can be used to configure it from your own PC software. As the protocol is fairly simple, the Lightning 20 can also be manually configured through a serial terminal, making it well suited as a dedicated driver paired with custom lamps. The unit is supplied with a DIN-rail clamp for easy mounting into system cabinets.
Features
- Driver max average power: 50W
- Driver max pulse power (500µs): 1100W
- End user can select lamp pulse intensity on a scale of 0–100%
- End user sets pulse duration in steps of 1µs
- Driver limits pulse duration to protect the lamp
- Accepts supply voltage between 18 and 30V
- Pulse current ranging 0–20A
- Lamp voltages from 12V to 55V
- Trigger input accepts both 5V and 24V signals, while still having low noise sensitivity
