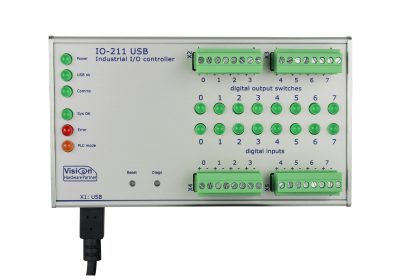

The USB I/O controller is an elegant and affordable solution for adding robust digital I/O to a PC based computer.
Features
- No additional power necessary — powers through the USB port
- Easy connection through detachable screw terminals per 4 inputs/outputs
- Status indicators for all channels
- Status indicators for USB and controller status
- Fully galvanically separated inputs support 5V, 12V and 24V logic
- Fully galvanically separated outputs are current limited
- Average response time <5ms
- Demo software for easy testing
- Hardware pulse counters
- Programmable events for pin change and counter value compare
- Special set of timing features
Hardware Counters
The I/O controller features two 16-bit hardware counter inputs. The user can either request the count values, or request to be notified at specific counter values.
Timing Features
- Input events can be time-stamped with counter values
- Pulses/pulse trains of set length can be generated
- Pulses can be triggered by set counter values
PC Software
- Visualization tool
- .NET class library API
- C++ API available
