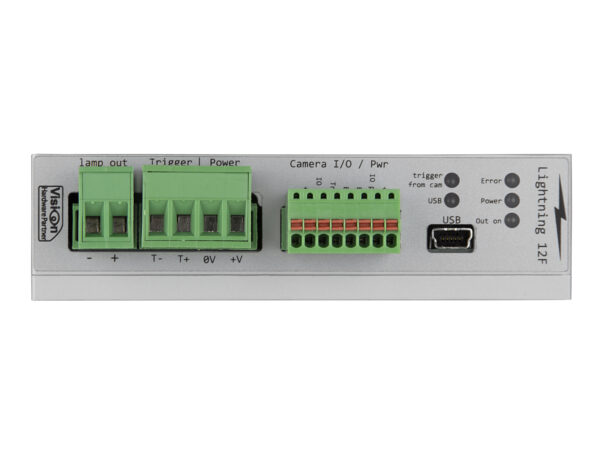

The Lightning 12F LED lamp driver is our most advanced LED pulse driver. The thin form factor makes it ideal for use on crowded DIN-rail cabinets. Small to medium sized LED lamps can be driven in either continuous or pulsed mode.
The enable input can be used as a trigger (pulse mode) or as an enable input. The driver can be configured with the supplied software, and the supplied DLL can be used to configure it from your own PC software. As the protocol is fairly simple, the Lightning 12F can also be manually configured through a serial terminal — making it well suited as a dedicated driver paired with custom lamps.
Features
- Driver max average power: 30W
- Driver max pulse power (100µs): 550W
- End user can select lamp pulse intensity on a scale of 0–100%
- End user sets pulse duration in steps of 1µs
- Driver limits pulse duration to protect the lamp
- Accepts supply voltage between 20 and 28V
- Pulse current ranging 0–12.5A while drawing no more than 2A from the 24V rail
- Continuous current ranging 0–1A
- Trigger input accepts both 5V and 24V signals
